Responsive Support
- Accessible technical training or online resources.
- No Downtime. Quick turnaround for service and parts.
- Equipment redundancy.
- Replacements ship next day. - Built-in comprehensive warranty.
Single Pass 4K Video Inspection
- Ability to capture detailed images that clearly show cracks, roots, and leaks.
- Powerful lighting for consistent results.
- 360° panoramic capture means nothing is missed.
- Dual camera (up to 4K) redundancy enables inspect-to-clean.
- Live and post inspection 360° PTZ capability.
- Reduce field time by coding post inspection.
- Multi use capability: PACP/MACP/MSI in a single pass
Strong ROI
- Fast inspections → more jobs completed.
- Reliable results → fewer re-inspections or disputes.
- Flexible Pricing. Solutions that fit your budget.
Highly Portable: Battery Powered - No Truck Needed
- Quick setup and intuitive operation.
- Full-day battery life, no generator needed.
- Portable (40 lb total system weight).
- Easy to deploy in hard-to-reach locations such as easements.
Easy & efficient inspection

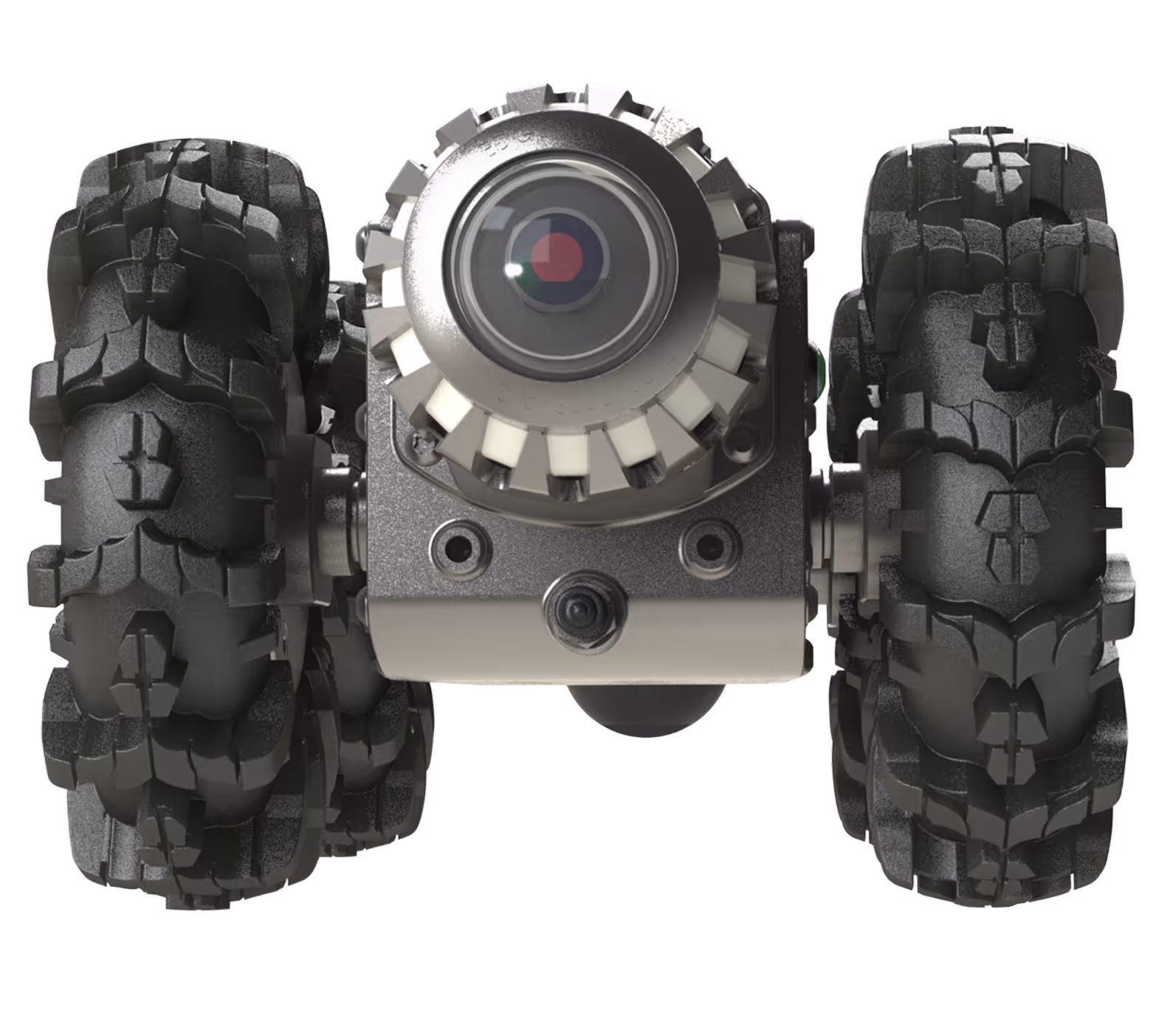

Pipe Dream® Robot Base Model & TOF Model Specifications
Spec Category
Pipe Dream® Base Model
Pipe Dream® Time-of-Flight Model
Pipe Size Range (inches)
6-24"
6-48"+
Manhole Depth Range (feet)
Up to 10'
Any
Robot Weight (lbs)
Bot is 8.94 lbs
RC wheels 2.69 lbs
5” grinders 3.44 lbs
4” grinders 2.81 lbs
3.5” grinders 2 lbs
RC wheels 2.69 lbs
5” grinders 3.44 lbs
4” grinders 2.81 lbs
3.5” grinders 2 lbs
Bot is 10.61 lbs
RC wheels 2.69 lbs
5” grinders 3.44 lbs
4” grinders 2.81 lbs
3.5” grinders 2 lbs
RC wheels 2.69 lbs
5” grinders 3.44 lbs
4” grinders 2.81 lbs
3.5” grinders 2 lbs
Robot Dimensions (L x W x H, inches)
23” X 3.4” X 4”
26” x 3.4” x 4”
Drive System
Direct Drive
Wheel Guide: PDFÂ Link
Wheel Guide: PDFÂ Link
Motor Type
Electric Brushless
Electric Brushless
Steering Method
Skid Steering
Skid Steering
Max Speed (ft/min)
72
72
Onboard Battery
Ternary Lithium
Ternary Lithium
Battery Runtime (hours)
8-12
6-10
Battery Charge Time (hours)
2-4* graph follows a logarithmic pattern (first 15 mins from dead will be a 10 to 1 ratio, last 15 mins will be a 1 to 10 ratio)
2-4* graph follows a logarithmic pattern (first 15 mins from dead will be a 10 to 1 ratio, last 15 mins will be a 1 to 10 ratio)
Tether Connection
Edge Connect Custom Fiber Coupling
400 lbs tensile strength cable and connector
400 lbs tensile strength cable and connector
Edge Connect Custom Fiber Coupling
400 lbs tensile strength cable and connector
400 lbs tensile strength cable and connector
Camera Resolution (Megapixels)
8
8
Camera Functions
2k/4k mode
Digital pan, tilt, zoom
Digital pan, tilt, zoom
2k/4k mode
Digital pan, tilt, zoom + Time-of-Flight Sensors
Digital pan, tilt, zoom + Time-of-Flight Sensors
Lighting Output (Lumens)
400
1200
Waterproof Rating
IP68
IP68
Sensors
IMU, barometer, temperature/humidity sensors
IMU, barometer, temperature/humidity sensors, ovality sensors (TOF)
Storage Method
Internal Solid State
Internal Solid State
Operating Temp Range
0 deg C to 50 deg C(32 deg F to 122 deg F)
0 deg C to 50 deg C(32 deg F to 122 deg F)
Pipe Dream® Robot Base Model and TOF Model Specifications
Spec Category
Pipe Dream® Base Model
Pipe Size Range (inches)
6-24"
Manhole Depth Range (feet)
Up to 10'
Robot Weight (lbs)
Bot is 8.94 lbs
RC wheels 2.69 lbs
5” grinders 3.44 lbs
4” grinders 2.81 lbs
3.5” grinders 2 lbs
RC wheels 2.69 lbs
5” grinders 3.44 lbs
4” grinders 2.81 lbs
3.5” grinders 2 lbs
Robot Dimensions (L x W x H, inches)
23” X 3.4” X 4”
Drive System
Motor Type
Electric Brushless
Steering Method
Skid Steering
Max Speed (ft/min)
72
Onboard Battery
Ternary Lithium
Battery Runtime (hours)
8-12
Battery Charge Time (hours)
2-4* graph follows a logarithmic pattern (first 15 mins from dead will be a 10 to 1 ratio, last 15 mins will be a 1 to 10 ratio)
Tether Connection
Edge Connect Custom Fiber Coupling
400 lbs tensile strength cable and connector
400 lbs tensile strength cable and connector
Camera Resolution (Megapixels)
8
Camera Functions
2k/4k mode
Digital pan, tilt, zoom
Digital pan, tilt, zoom
Lighting Output (Lumens)
400
Waterproof Rating
IP68
Sensors
IMU, barometer, temperature/humidity sensors
Storage Method
Internal Solid State
Operating Temp Range
0 deg C to 50 deg C(32 deg F to 122 deg F)
Spec Category
Pipe Dream® Time-of-Flight Model
Pipe Size Range (inches)
6-48"+
Manhole Depth Range (feet)
Any
Robot Weight (lbs)
Bot is 10.61 lbs
RC wheels 2.69 lbs
5” grinders 3.44 lbs
4” grinders 2.81 lbs
3.5” grinders 2 lbs
RC wheels 2.69 lbs
5” grinders 3.44 lbs
4” grinders 2.81 lbs
3.5” grinders 2 lbs
Robot Dimensions (L x W x H, inches)
26” x 3.4” x 4”
Drive System
Direct Drive
Wheel Guide: PDFÂ Link
Wheel Guide: PDFÂ Link
Motor Type
Electric Brushless
Steering Method
Skid Steering
Max Speed (ft/min)
72
Onboard Battery
Ternary Lithium
Battery Runtime (hours)
6-10
Battery Charge Time (hours)
2-4* graph follows a logarithmic pattern (first 15 mins from dead will be a 10 to 1 ratio, last 15 mins will be a 1 to 10 ratio)
Tether Connection
Edge Connect Custom Fiber Coupling
400 lbs tensile strength cable and connector
400 lbs tensile strength cable and connector
Camera Resolution (Megapixels)
8
Camera Functions
2k/4k mode
Digital pan, tilt, zoom + Time-of-Flight Sensors
Digital pan, tilt, zoom + Time-of-Flight Sensors
Lighting Output (Lumens)
1200
Waterproof Rating
IP68
Sensors
IMU, barometer, temperature/humidity sensors, ovality sensors (TOF)
Storage Method
Internal Solid State
Operating Temp Range
0 deg C to 50 deg C(32 deg F to 122 deg F)
Pipe Dream® Motorized E-Reel
Spec Category
E-Reel Unit
Cable Capacity (ft)
500/1000/1500/2000 or custom
Cable Type
Edge AI PipeTrax kevlar-reinforced fiber optic cable
Tether Break Strength (lbf)
400+ (lbs) tested
Reel Weight (empty)
20.06 lbs for up to 1000 ft of cable
60 lbs for 1500+ ft of cable
60 lbs for 1500+ ft of cable
Reel Weight (loaded)
500 ft: 31.63 lbs
1000 ft: 38.19 lbs
1500 ft: 84.69 lbs
2000 ft: 91.25 lbs
1000 ft: 38.19 lbs
1500 ft: 84.69 lbs
2000 ft: 91.25 lbs
Battery Type
2 x removable Makita
Battery Runtime (hours)
16
Battery Charge Time (hours)
Roughly 1 hour per Makita
Waterproof Rating
E-Reel is NOT waterproof - it is water resistant to light rain only
Connectivity
Fiber Optic cable and coupling
Pipe Dream® Odometry Box
Spec Category
ODE Box Unit
Weight (lbs)
2.56
Dimensions (L x W x H, inches)
7.25” X 4” X 3.1”
Battery Type
Ternary Lithium
Battery Runtime (hours)
30
Battery Charge Time (hours)
1-2
Accuracy
+/- 1 foot at any distance
Pipe Dream Specifications
